HXI future observations based on simulated data

1

2

1. Flare light curve based on HXI simulation data (v2.0). The simulation data consider the effects or influences of flare X-ray physical models, mass model of the satellite, internal detector background, calibration spectral lines, variation of in-orbital background, data gaps, radiation belt in the polar regions, night time, South Atlantic Anomaly area, pointing change, particle events, etc., and are as close as possible to the future observed data.

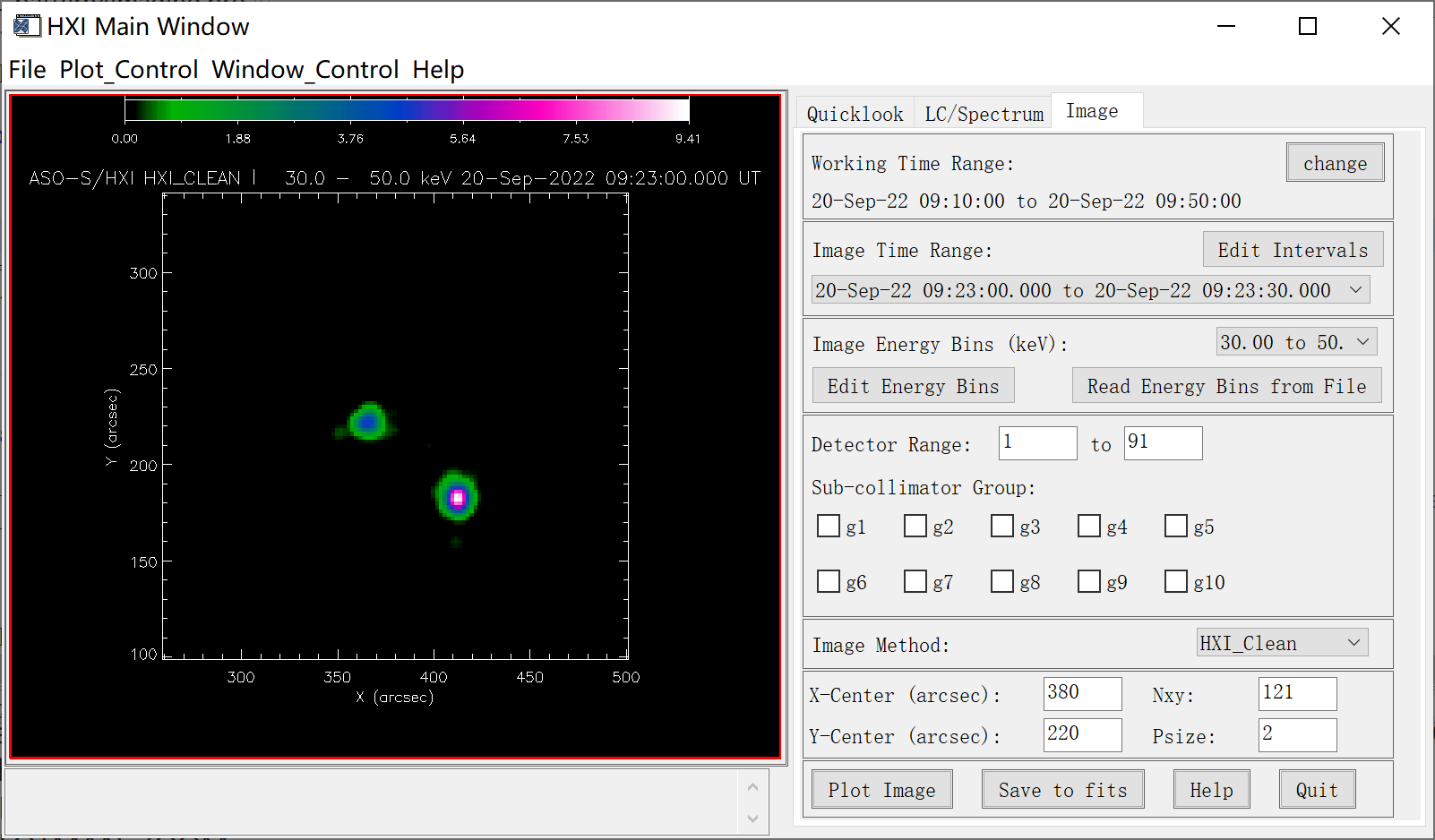

2. Clean image obtained by using simulated flare data, HXI imaging algorithm and HXI scientific analysis software have corrected the impact of pointing change, showing common hard X-ray double footpoint sources.
